Home Trailer Side Wall Semi Trailer

Side Wall Semi Trailer

Overall L*W*H13000x2600x3420mm
Trailer Sides1800mm
Tire12 units,12.00R22.5 or315/80R22.5
Loading capacity≤60T
Rim9.00-22.5 or9.75-22.5
Landing gearJOST
Side Wall Semi Trailer

Description

Side Wall Semi Trailer  Specification

Side Wall Semi Trailer adopts advanced submerged arc welding technique to produce the fence cargo trailer for sale ,there is no welding interface between middle,bottom and upper plate of main beam.

The main beam of sinotruk trailer Side Wall Semi Trailer is made of high strength steel, which has more loading capacity. The chinese trailers Sinotruk manufacturer service life will be more than 10 years. Sinotruk trailer manufacturer reinforces the main beam.
As for the gooseneck parts of the main beam, the middle plate has been reinforced by double plate, which makes the main has small deformation even if loading heavy things.



Side Wall Semi Trailer Parameters
Dimension(mm): 13000x2600x3420mm
Trailer Sides:1800mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T, FUWA/ BPW /Sinotruk trailer Brand
Tire: 12 units,12.00R22.5 or315/80R22.5
Rim: 9.00-22.5 or9.75-22.5
Suspension: Mechanical Suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T
Main Beam: Height:500mm,Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm Material:Q345B steel
Platform: 3mm-thick checkered plate.

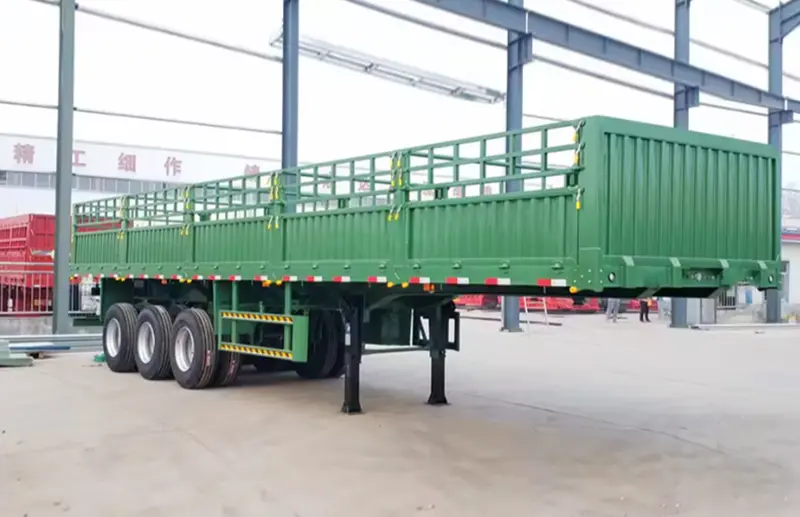

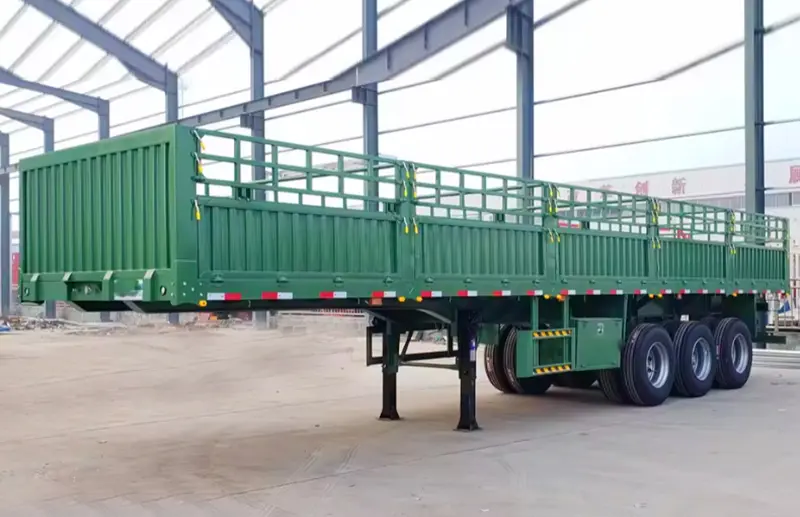

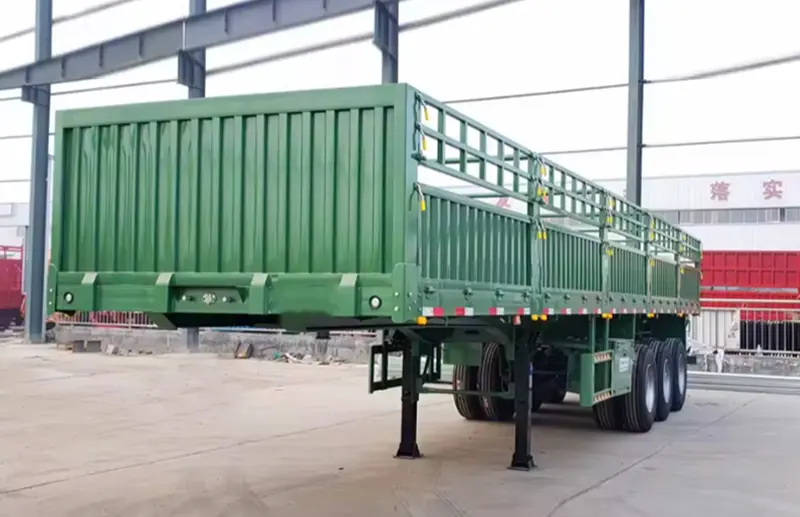

Products picture

Side Wall Semi Trailer

Side Wall Semi Trailer | 3 axle wall side semi trailer | cargo side wall semi trailer | chinese trailers

Side Wall Semi Trailer

Side Wall Semi Trailer | 3 axle wall side semi trailer | cargo side wall semi trailer | chinese trailers

Side Wall Semi Trailer

Side Wall Semi Trailer | 3 axle wall side semi trailer | cargo side wall semi trailer | chinese trailers
