Payload:80 tons, customized
Box thickness:Bottom plate:8mm Side plate:6mm

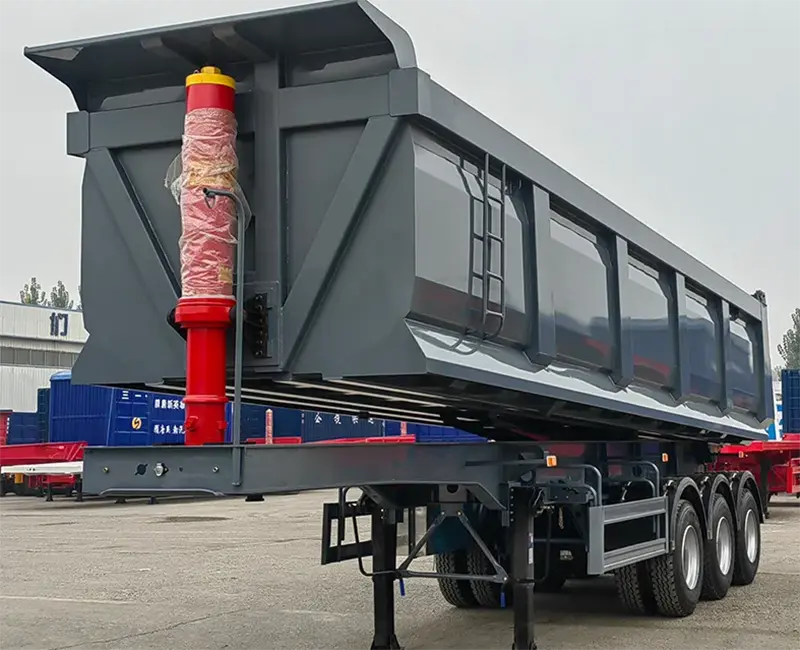

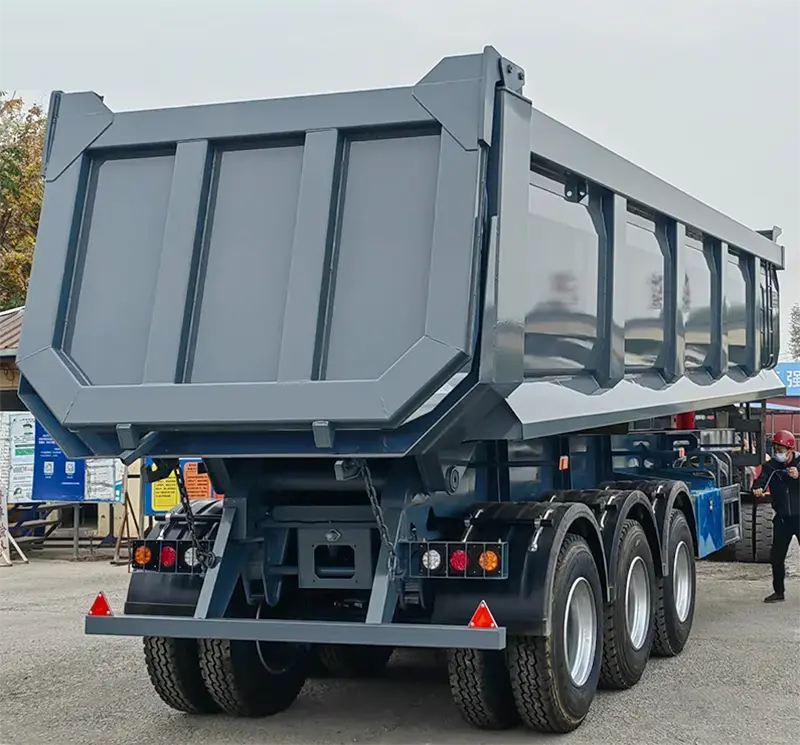

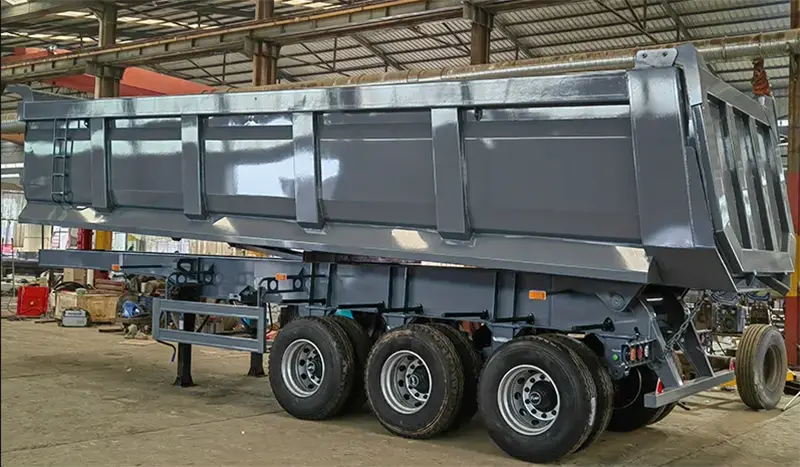

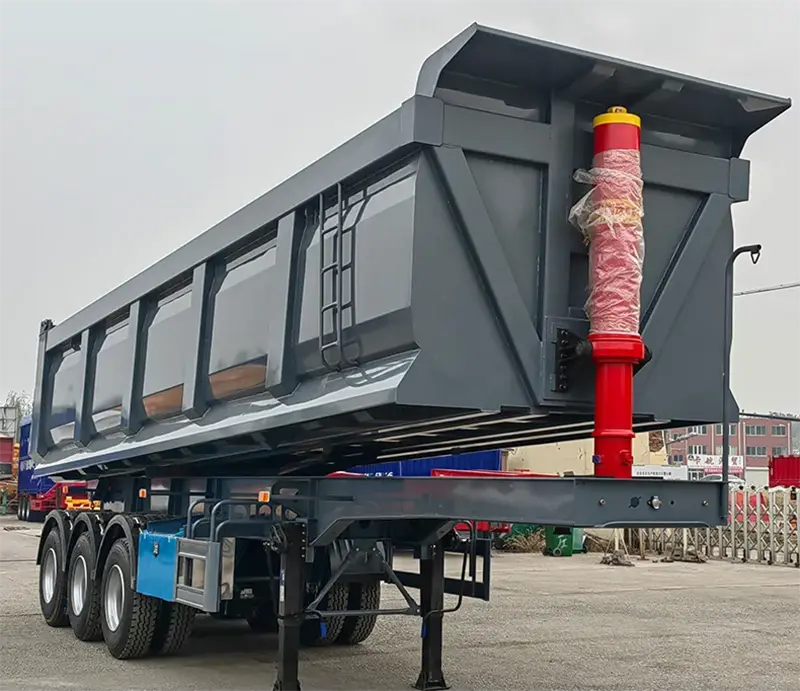

Sinotruk Howo Trailer Specification
Sinotruk Howo Trailer semi trailer end dump truck compartments are trucks equipped with automatic dumping devices. Also known as dump trucks, engineering trucks, by the truck chassis, hydraulic lifting mechanism, pick-up device and cargo compartments. In civil engineering, it often works together with excavator, loader and belt conveyor, constituting loading, transporting and unloading production line for loading and unloading and transporting earth, sand and gravel and loose materials.
As the loading carriage can automatically tilt a certain angle to unload, Sinotruk Howo Trailer semi trailer end dump truck can greatly save the unloading time and labour, shorten the transport cycle, improve the production efficiency, reduce the cost of transport, and mark the loading volume. Sinotruk Howo Trailer semi trailer end dump truck is commonly used transport machinery.
Sinotruk Howo Trailer end dump semi trailer introduction: The construction of engine, chassis and cab is the same as that of general load car. The China Sinotruk Howo Trailer end dump semi trailer carriages can be tilted backward or sideways, through the manipulation system to control the piston rod movement, backward tipping is more common, push the piston rod to make the carriages tipped. A few two-way tipping. High-pressure oil enters into the lifting hydraulic cylinder through the distribution valve and oil pipe, and there is a safety guard plate for the cab at the front of the carriage. Carriage hydraulic tipping mechanism consists of oil tank, hydraulic pump, distribution valve, lifting hydraulic cylinder, control valve and oil pipe.
The engine drives the hydraulic pump through the transmission and power take-off device, and the high-pressure oil enters into the lifting hydraulic cylinder through the distribution valve and oil pipe, and pushes the piston rod to make the carriages tilted over. Sinotruk Howo Trailer end dump semi trailer Later tipping is more common, through the manipulation system to control the movement of the piston rod, can make the carriage stop in any desired tilt position. The carriage is reset by its own gravity and hydraulic control.
The Sinotruk Howo Trailer end dump semi trailer main technical parameter of a Sinotruk Howo Trailer semi truck dump trailer is the loading weight, and the loading volume is marked. The Sinotruk Howo Trailer semi truck dump trailer new car or overhauled factory car must be test run so that the carriage lifting process is smooth and free of crosstalk.
The use of each part should be in accordance with the provisions of the correct choice of lubricants, greatly save unloading time and labour, pay attention to the lubrication cycle, the lifting mechanism is strictly in accordance with the period of oil exchange. Sinotruk Howo Trailer end dump semi trailer Load according to the rated loading capacity, overloading is strictly prohibited.
Sinotruk Howo Trailer Parameters
Sinotruk Howo Trailer – end dump semi trailer configuration | |
External dimensions (length, width, height) | 11700*2650*3800 |
Internal dimensions (length, width, height) | 11000*2650*2000 |
dead-weight | About 18000KG |
suspension | Widened and thickened mechanical suspension(customizable) |
tire | 12.00R20 12tire |
axls |
Fuwa 20T 3 pieces |
steel ring | 8.5–20 12pieces |
King pin | 90# |
Outrigger | 28T |
Girder configuration | Upper wing plate 20mm, lower wing plate 20mm, web 16mm, height 500mm |
base plate, side plate | base plate:12mm side plate:8mm wear-resistant steel |
Hydraulic system | HYVA 202-5-7295 |
leaf spring | 120*16*10 6pieces |
light | LED rear combination lights, side marker lights, license plate lights, brake lights. |
circuit | 24V 6-core circuit |
Electrical connections | International standard gas connector, 24V 7-pin socket |
color | customizable |
