Payload:80 tons, customized
Box thickness:Bottom plate:8mm Side plate:6mm
Description
Sinotruk Trailers Price Specification
Sinotruk Trailers Price cheaply – Chinese trailer manufacturers semi trailer end dump truck is used to transport of bulk cargo, coal, ore and build materials. The corner of U-shaped box doesn’t exist dead ends, unloading more clean; Adopt T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; Sinotruk Trailers Price cheaply -U-shaped structure of the lower center of gravity to avoid the goods spilled.
Sinotruk international adopt world famous brand of parts, like JOST, WABCO braking valve, etc. We can also produce the semi trailers like lowboy semi trailer, semi flatbed trailer, skeleton trailer, fuel tank trailer,semi van trailer,refrigerated trailer,extendable lowboy trailer, cement tanker trailer for sale, etc.
Sinotruk trailer are chinese trailer manufacturers, china sinotruk international co ltd. provide customized service, design as the customers’ every request. Sinotruk howo trailer have a professional trailer design department , rich production experience, short delivery time.sinotruk howo factory has passed ISO9001 quality system certification. sinotruk howo factory phone service 24 hours service for you. sinotruk group cooperation can be ODM or OEM mode.
Sinotruk Trailers Price Parameters
| china sinotruk howo semi trailer Overview | ||||
| product name | rear tipping semi-trailer – sinotruk factory in china |
Warranty Period/Certificate | 12 months | |
| transport medium | ore, sand | Production cycle | 15 days | |
| Dimensions | 9600×2500×3990mm | total mass | 72 tons | |
| dead weight | about 12 tons | load | 60 tons | |
| china sinotruk howo semi trailer parameters (main configuration) | ||||
| Specification | Dimensions | 9600×2500×3990mm | Bearing surface size: | 8900*2300*1600mm |
| draw pin height | 1300mm | front/rear suspension | ||
| wheelbase | 1310mm | wheelbase | 1850mm | |
| Frame body configuration | ItemItem | material | Specification | |
| girders | Q345 | Height 500mm, width 140mm, upper wing plate 16mm, lower wing plate 18mm, vertical plate 14mm; | ||
| beam | Q345 channel steel | 100mm channel steel | ||
| Bottom and side panels | Q235 manganese plate | Bottom 8 Sides 6 | ||
| Accessories | suspension | 3-axle heavy-duty mechanical suspension | leaf spring | 100*16*10-6 racks |
| Axle Specification/Brand | 13T/1850 Fuhua | number of axles | 4 sticks | |
| Tire Size/Brand | 12R22.5 | Number of tires | 16 | |
| Steel ring specification/brand | 9.0-22.5 | Number of rims | 16 | |
| Outrigger Specifications/Brands | 28T/Asia China | Traction Pin Specifications | 50# or 90# interchangeable type | |
| hydraulic cylinder | 200-5-6800 Lifting Cylinder | |||
| Brake system | Brake valve brand | 1 WABCO | Brake chamber size/quantity | T30/30-6 only |
| Brake system | Emergency braking system, air brake, dual air pipelines, 6 T30/30 brake air chambers, two 40L air tanks | |||
| electrical circuit system | circuit socket | 7-hole socket | Voltage | 24 pay |
| lamps | LED lights | Two rear tail lights (including two steering lights, two brake lights, two constant lights), 8 side lights, and two rear tail triangular reflectors; | ||
| appendix | toolbox | 1 toolbox | tool | Axle wrench, rocker |
| Spare tire rack | 1 | |||
| color | according to customers needs | |||

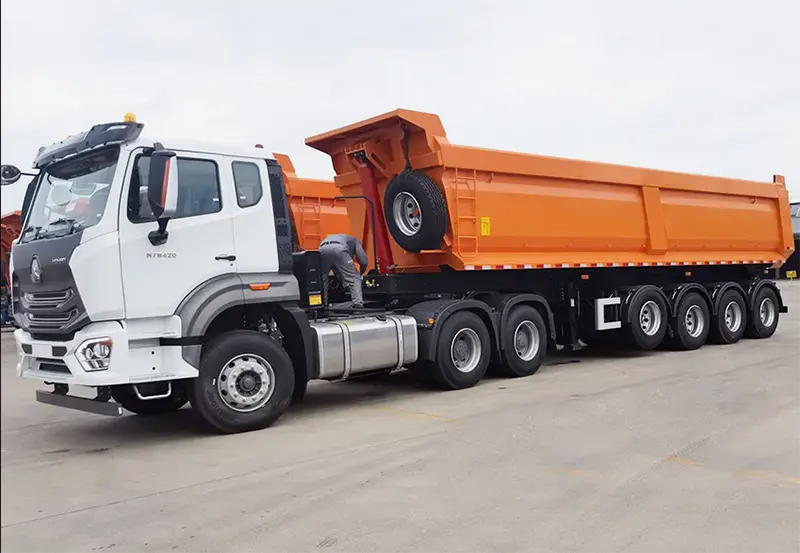

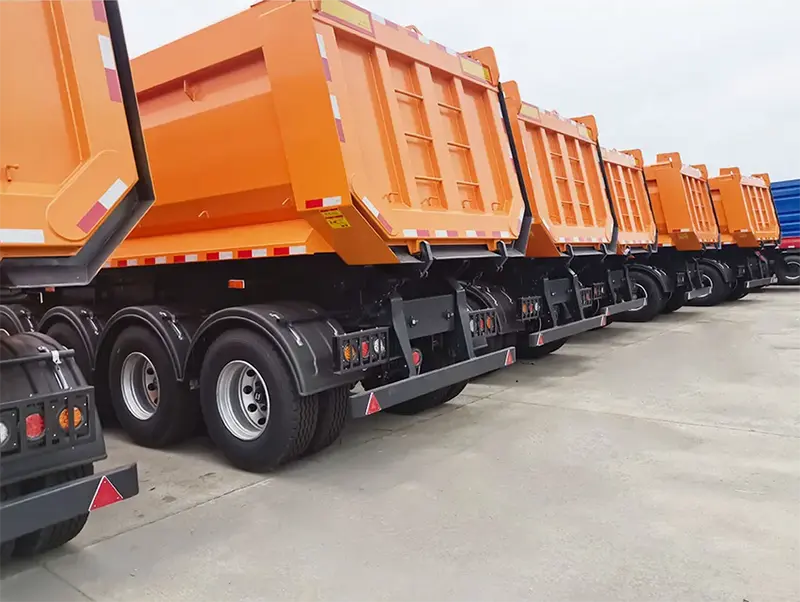

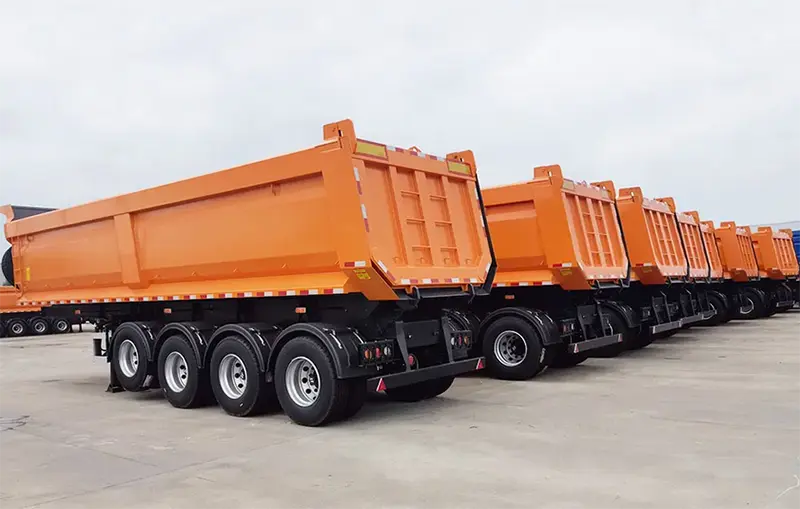

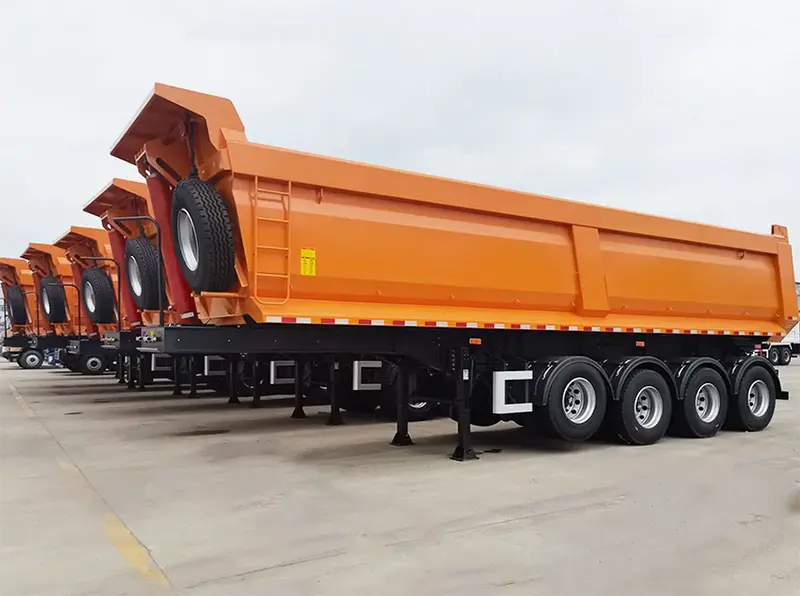

Products picture
Sinotruk Trailers Price | howo trailer truck | chinese semi truck | trailers made in china
Sinotruk Trailers Price | howo trailer truck | chinese semi truck | trailers made in china
Sinotruk Trailers Price | howo trailer truck | chinese semi truck | trailers made in china
Sinotruk Trailers Price | howo trailer truck | chinese semi truck | trailers made in china
