Home Trailer Dump Semi Trailer

Tipping Trailer

Overall L*W*H13000*2550*3440(mm)
Payload30-60 tons, customized
Volume (CBM)24 to 45 CBM
AxlesFUWA/BPW or other Brands
Landing gearJOST 19"
SuspensionMechanical Suspension
Tipping Trailer

Description

Tipping Trailer Specification

Advantages of  Sinotruk trailer Tipping Trailer

1. High load capacity
Chinese trailers Tipping Trailer has a high payload capacity, which makes it ideal for transporting heavy loads. With a maximum load capacity of up to 80,000 pounds, this semitrailer can handle even the most challenging hauls with ease.

2. Excellent manufacturing quality
Semi trucks for sale  Our Tipping Trailer are designed and manufactured using only the highest quality materials, ensuring they provide exceptional performance and durability. The semi-trailer is made of high-strength steel, which is corrosion-resistant and rust-proof, ensuring a service life of many years.

3. Easy to operate
Thanks to the state-of-the-art hydraulic system, the 3-axle end steel dump trailer is extremely easy to operate. The hydraulic lift system allows the trailer to be easily unloaded, making it ideal for businesses looking for a quick and efficient solution to their transportation needs.



Transfer Trailers Parameters

Trailer Name Transfer Trailers
Dimensions 13000mm*2550mm*3440mm
Loading 30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3
Tire 12R22.5, 11.00R20, 12.00R20, 315/80R22.5
Material Main beams Q345B, upper flange:14mm, middle:10mm, down:16mm
Axles 13T/16T/20T BPW or FUWA
King Pin 2″ or 3.5″
Brake System WABCO Valve with big chamber
LandingGears 28ton ,double speeds
Suspension spring suspension or Air suspension
ElectricalSystem 24v, 7core socket, lights according to European standards (suitable for all market)
Floor 8mm plate, side wall 6mm
Other parts 1 tool boxs, 1 spare tire carrier
Functions

Transport sand,earth work, stone,etc

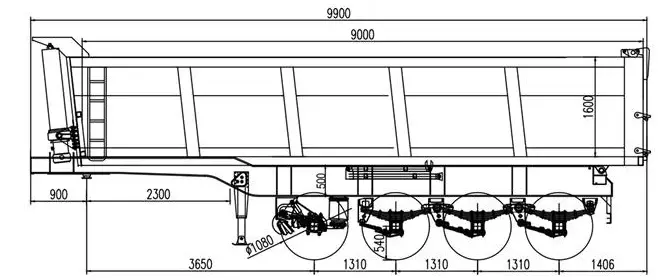

Tipper Trailer Drawings

Products picture

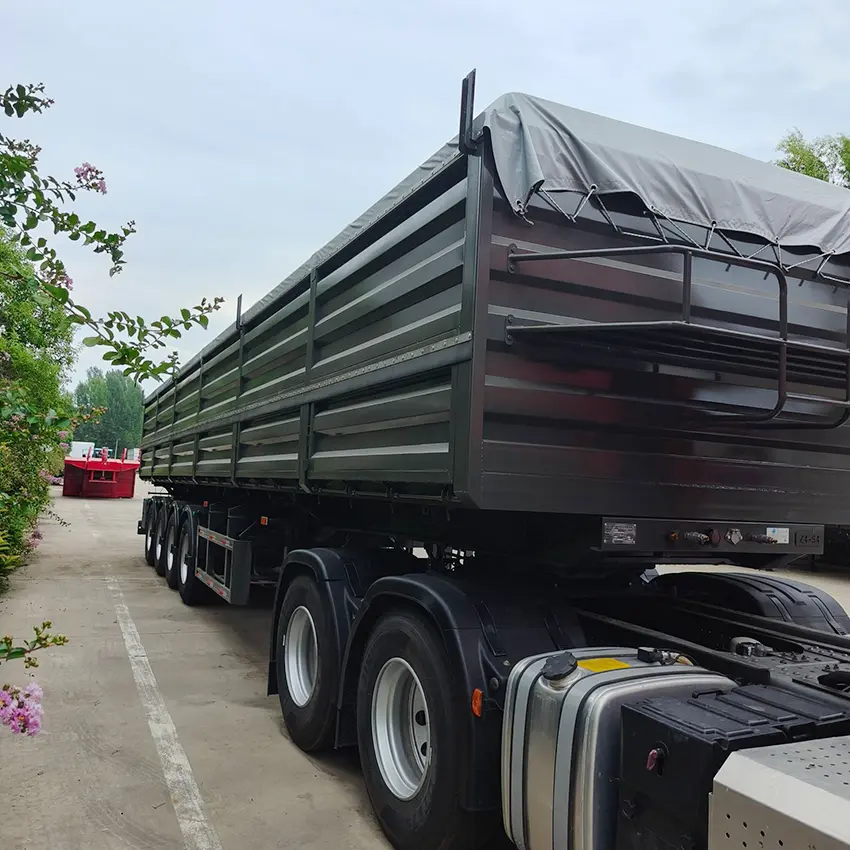

tipping trailer-1

Tipping Trailer | transfer Trailers For Sale | Trailer Tipper | Tipping Trailers | Hydraulic Tipper Trailer For Sale

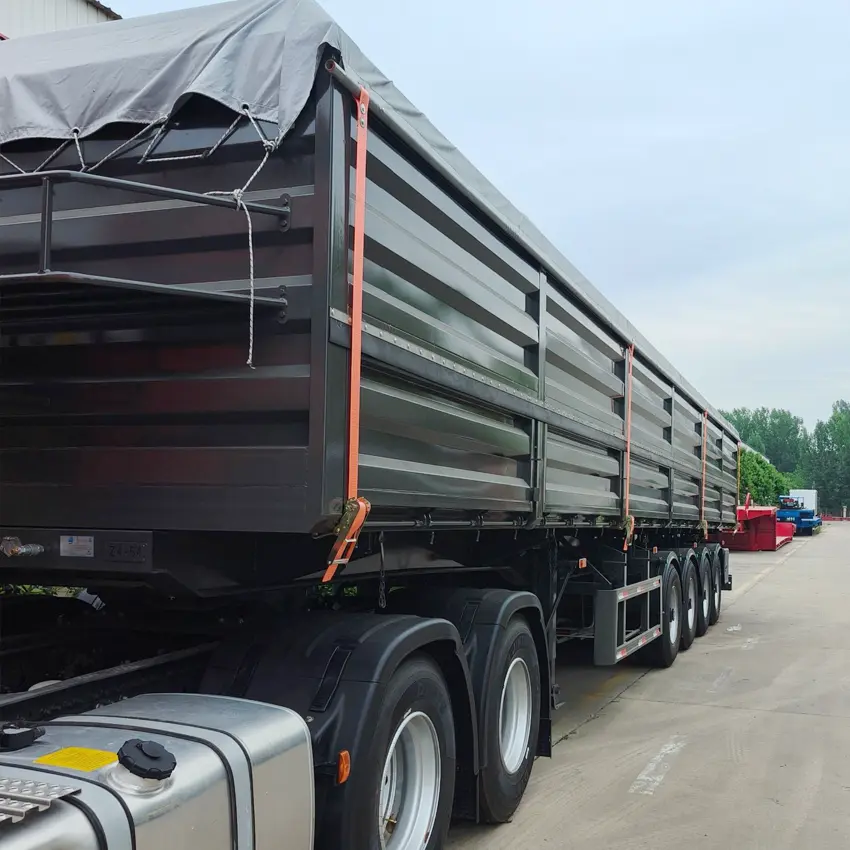

tipping trailer-2

Tipping Trailer | transfer Trailers For Sale | Trailer Tipper | Tipping Trailers | Hydraulic Tipper Trailer For Sale

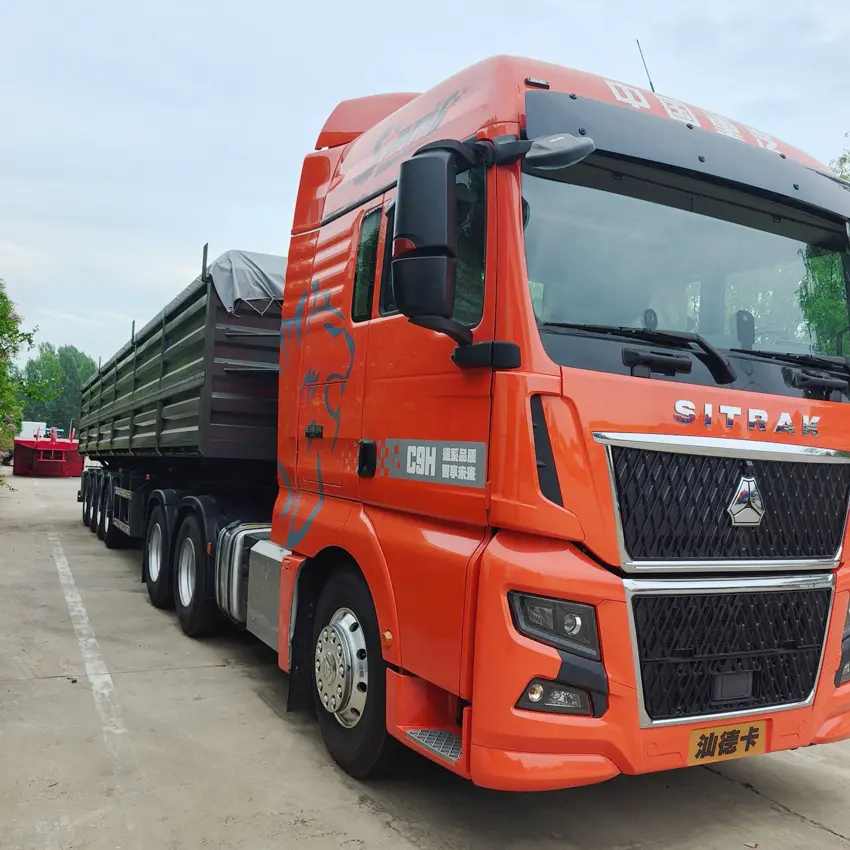

tipping trailer-3

Tipping Trailer | transfer Trailers For Sale | Trailer Tipper | Tipping Trailers | Hydraulic Tipper Trailer For Sale

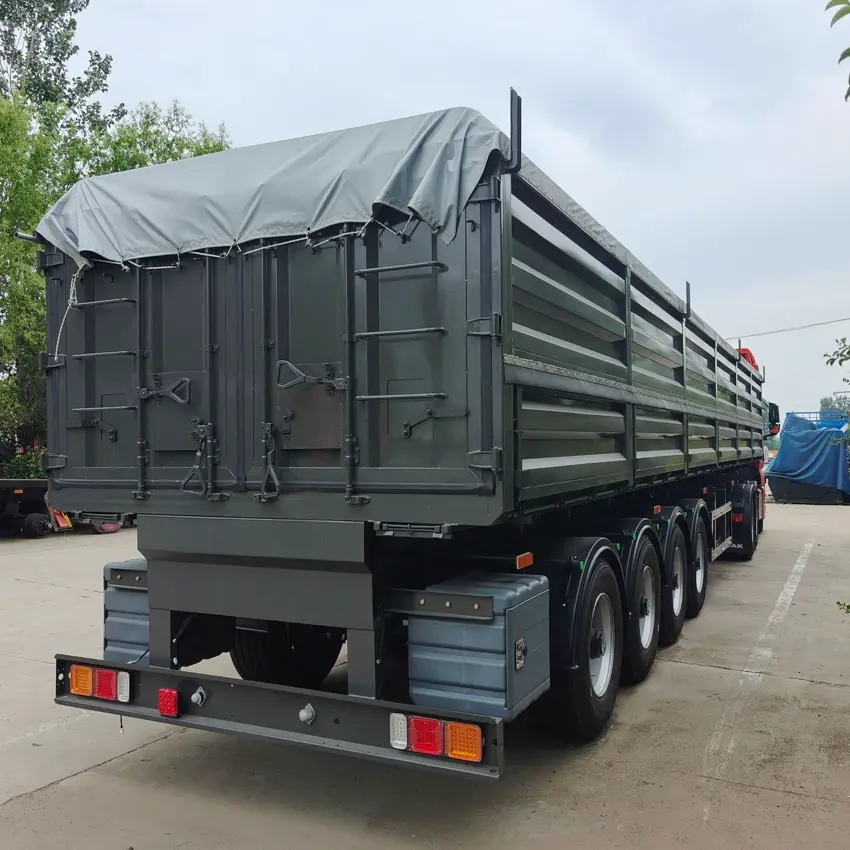

tipping trailer-4

Tipping Trailer | transfer Trailers For Sale | Trailer Tipper | Tipping Trailers | Hydraulic Tipper Trailer For Sale
