China Spray Trucks Main Specification
China Spray Trucks equipment was specially designed to synchronously spraying asphalt binder and spreading aggregate. It can also separately spray asphalt binder and spread aggregate. Synchronous chip seal allows the asphalt binder and aggregate are brought into contact with the road surface within one second. The adhesive properties of the asphalt binder are at their maximum. The asphalt binder can bind the aggregate much better.
China Spray Trucks is very suitable to the construction and maintenance of the main road, urban road and rural road. It is mainly composed of truck chassis, insulated asphalt tank, combined aggregate hopper, Burner automatic-control heating system, asphalt circulating system, hot oil heating and circulating system, asphalt spraying system, aggregate spreading system, hydraulic system, pneumatic system, computer-control system, monitoring system, etc.. This equipment was firstly developed and manufactured by our company in China.
Chassis Information | |
Item Name | SINOTRUK HOWO |
Chassis brand | ZZ1257N4341W |
Drive type | 6X4 |
Dimension Parameter | |
Overall dimension (L*W*H) (mm) | 10200*2500*3730 |
Wheel base (mm) | 4325+1350 |
Wheel No. | 3 |
Weight Parameter | |
GVW (kg) | 25000 |
Kerb weight (kg) | 18200 |
Front/Rear Axle load | HF7T /ST16T |
Engine Parameter | |
Model | WD615.69 |
Manufacturer | CNHTC |
Horsepower (hp) | 336 |
Displacement / power (ml/kw) | 9726/247 |
Engine type | 6 cylinder in line, 4 stroke, water cooled, direct injection |
Emission Standard | EURO 2 |
Transmission | |
Control type | Manual |
Gear Shift | 10 speed forward, 2 speed reverse |
Tyre | |
Type | 295/80R22.5 |
Tyre No. | 10+1 spare tire |
Cab | |
Type | HOWO HW76 flat-roof cab with A/C, power steering |
Synchronous Chip Sealer Upper Structure | |
Volume | 8M3 asphalt tank + 12M3 stone silo |
Material of the asphalt tank | Inner 4mm carbon steel, medium 100mm rock wool, outer 1mm stainless steel |
Spraying medium | emulsified asphalt, hot asphalt, modified asphalt |
Asphalt Pump Model | QGB950 (high viscosity asphalt pump) 950L/min |
Hydraulic system | Gear pump (Tianjin GPC4-50-20-16), automatic reversing valve and relief valve, asphalt pump hydraulic drive motor model 05-130-BD31; proportional valve EFRD-G03-160-5-31 (Taiwan) |
Control mode | Touch screen computer intelligent control in cab, control system (Germany Siemens); 32pcs asphalt intelligent nozzles (one control one); 16pcs stone material door. |
Heating mode | heat transfer oil automatic heating + burner G20 (Italian imported). |
Gasoline generator | HONDA 5.5KW |
Spraying rate of the asphalt | 0.25-4.0L/M2 |
Spraying width of the asphalt | 4m |
Spraying rate of the stone | adjustable |

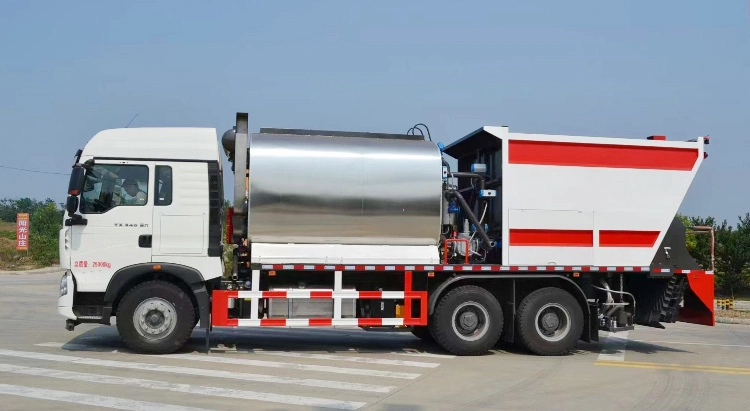

Product Images
