Howo 8x4 Dump Truck

Vehicle typeDump Truck

Max load (kg)30000

Power336-420hp

Dimension (mm)10245×2496×3400

CabinC7H-G, 2-berths

Message

Description

Howo dump truck is as versatile as your day to day challenges on the construction and mining site. Thanks to Sinotruk engine, it brings even more transport capacity and safety to your construction site. Making it a reliable and efficient partner for your work.

ITEM	6×4 howo dump truck	8×4 howo dump truck
Series	HOWO DUMP TRUCK	HOWO DUMP TRUCK
Number of tire	10 wheel	12 wheel
Dimension (mm)	8400×2496×3400	10245×2496×3400
Wheel base (mm)	3600+1350	1800+3500+1350
Curb weight (kg)	12080	14860
Max load (kg)	25000	30000
Engine brand	SINOTRUK	SINOTRUK
Emission	EURO2-5	EURO2-5
Power	336-420hp	336-420hp
Gearbox Model	HW19710	HW19710
Gearbox type	10 Forward speed gear	10 Forward speed gear
Howo dump truck axle	HF9/HC16	HF9/HC16
Howo dump truck tire	12.00R20 radial tire	12.00R20 radial tire
Howo dump truck cab	HW70 without sleeper	HW70 without sleeper

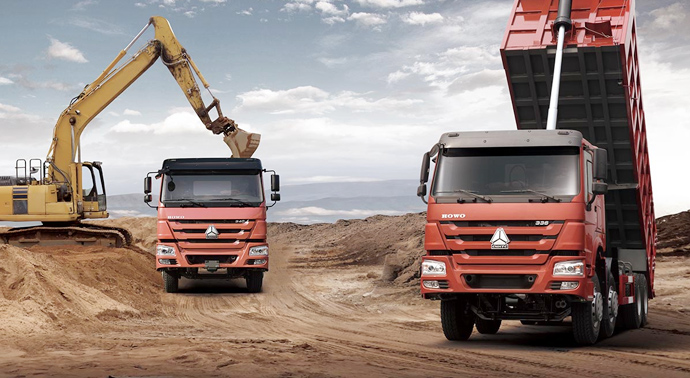

Product Images

High Reliability

Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.

Engine

DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
