Home Truck Cargo Truck

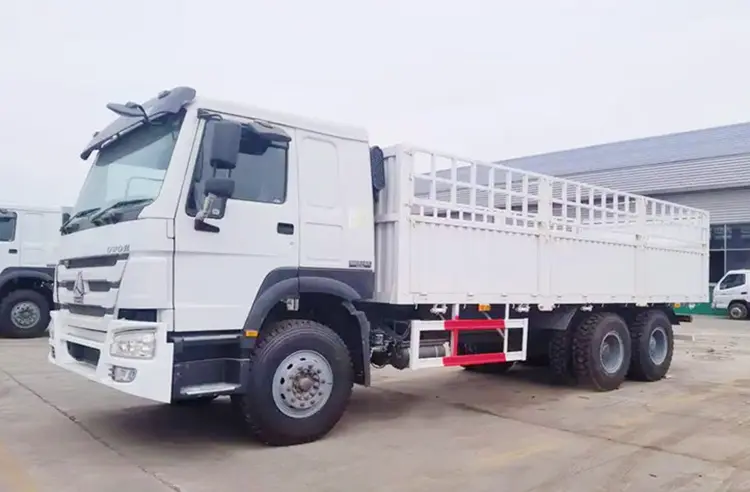

Howo Cargo Truck

Truck ModelZZ1317N3867A
Engine 336HP,371hp
Displacement9.726L
Dimension (mm)9500x2300x2200
Fuel Tanker300L
Howo Cargo Truck

Description

Howo cargo truck is one of the main products of Sinotruk. For the HOWO produced by China National Heavy Duty Truck, the Chinese label on the certificate is Hao Lo, but in spoken language, few people say that in daily life communication, people generally say HOWO, HOWO is the English label of HOWO. Only used in export cars.



Typical truck model ZZ1317N3867A ZZ1317N4667A
Cab Model HW79
Type HW79High Roof cab, two berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt.
Engine Model WD615.69 WD615.47
Rated power 336HP(247Kw/rpm) 371HP(273Kw/rpm)
Displacement 9.726L
Type 6 cylinder in-line with water cooling, turbo-charging & intercooling
Wheelbase 1800+3800+1400mm 1800+4600+1400mm
Cargo body size 8650x2300x2200mm 9500x2300x2200mm
Clutch Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance
Transmission SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse
Front axle Steering axle with double T-cross section HF7/HF9
Drive axle Pressed axle housing, central single reduction ST16/MCY(Q)/HC16/AC16
Ratio:3.93 4.42 4.8 5.73
Chassis Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe.
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer.
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer.
Spare wheel carrier: with one spare wheel.
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap.
Steering Germany ZF, hydraulic steering with power assistance
Brakes Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Wheel & Types Rims: 8.0-20, 10 hole-steel
Types 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube
Electrics Operating voltage:24V, negative grounded;  Starter: 24V, 5.4KW
Alternator: 28V, 1540W;  Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Product Images

Howo Cargo Truck | sinotruk Cargo Truck | sinotruk howo price | sinotruk for sale

Howo Cargo Truck | sinotruk Cargo Truck | sinotruk howo price | sinotruk for sale

High Reliability
High Reliability
Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.
Engine
Engine
DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
