Howo Concrete Mixer Truck

Truck ModelZZ1257M3641W
Dimensions8800*2550*3800 mm
EngineEuro III
Horse Power336hp
Fuel Tanker400L
Howo Concrete Mixer Truck

Description

Howo Concrete Mixer Truck is composed of automobile chassis, mixing drum, transmission system, water supply device, full-power power take-off, front and rear brackets of mixing drum, reducer, hydraulic transmission system, feeding and discharging system, control mechanism and other parts. Due to technical bottlenecks, domestically-made mixer trucks with a tank volume of 3m³-8m³ use four domestically-made parts, and most of the four major parts used for those with a volume of over 8m³ are imported parts.

The dedicated mechanism mainly includes power take-off, front and rear supports of the mixing drum, reducer, hydraulic system, mixing drum, operating mechanism, cleaning system, etc. Its working principle: take out the power of the car chassis through the power take-off device, and drive the variable pump of the hydraulic system, convert the mechanical energy into hydraulic energy and transmit it to the fixed motor, and then the motor drives the reducer. The reducer drives the mixing device to carry out Stir.

The domestic concrete mixer truck adopts the power take-off method of the main vehicle engine. The function of the power take-off device is to take out the engine power by manipulating the power take-off switch, and drive the mixing drum through the hydraulic system. The agitating drum rotates in the forward direction during the feeding and transportation process to facilitate the feeding and mixing of the concrete. Reverse rotation, cut off the power connection with the engine after the end of the work.

Type Howo Concrete Mixer Truck
Overall dimension 8800*2550*3800 mm
Volume 8m3
Mixer Pump Eaton (USA Brand)
Motor Eaton (USA Brand)
Speed Reducer Bonfiglioli (Italy Brand)
Frame Details parallel ladder with U-profiles and riveted cross members
Drive model 6×4
Emission EURO II
Horsepower howo truck 336HP
Drive Left hand driving, or Right hand driving
Front axle HF9, 9tons loading capacity
Rear axle HC16, 16tons loading capacity
Tyre 1200R20, 10+1 spare
Oil tank 400L
Cab

HW76 cab, one sleeper with A/C



Product Images

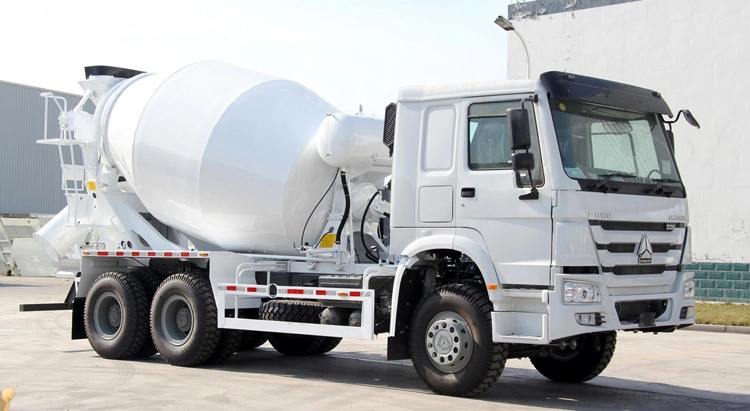

howo concrete mixer truck-1

Howo Concrete Mixer Truck | sinotruk mixer | howo mixer truck | china special truck

Howo Concrete Mixer Truck | sinotruk mixer | howo mixer truck | china special truck

High Reliability
High Reliability
Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.
Engine
Engine
DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
