Home Truck Tractor Truck

Howo Tractor Trucks

Drive type4x2
Engine371HP
Dimension (mm)6260*2496*3850
Curb weight(kg)7210
Power279/2200
Howo Tractor Trucks

Description

howo 4×2 tractor truck the newly designed Sinotruk D12 series engine is currently the most representative domestic heavy-duty truck engine with a power range of 340-460Ps. China National Heavy Duty Truck has developed a series of new technologies and achieved obvious differentiated results, making the D12 engine have good maneuverability. Large displacement and high power enable the vehicle to gain power from low idle speed. At the same time, its wide speed range enables the whole machine to obtain a constant power value and maximum torque value.

This characteristic determines the perfect fuel economy and driving performance of the D12 engine. Exquisite manufacturing and assembly processes make the engine overhaul mileage more than 1 million kilometers. Effectively solve the problem of high after-sales failures of other similar models in China. In order to meet the needs of different customers, China National Heavy Duty Truck has also customized the D10 series engine (270PS-380PS) for HOWO-A7. The D10 series engine adopts independent innovation, the first domestic technology-supercharger mid-mounted. The application of this technology has resulted in substantial changes in the intake and exhaust systems, with smooth intake and concise exhaust, making the vehicle’s “lung” function more prominent and improving fuel economy. D10 and D12 engines both meet the national 3 emission standards and have the technical potential of national 4 and national 5.

Howo Tractor Trucks main technical parameters (4×2, Euro Ⅲ, high floor extended)

Model ZZ4187N3517N1B ZZ4187N3517P1B
Dimension(Lx W xH)(unloaded)(mm) 6260×2496×3850
Approaching angle/Departure angle(°) 15/38
Overhang(front/rear) (mm) 1540/1120
Wheel base (mm) 3500
Max speed(km/h) 101
Curb weight(kg) 7210
Engine(Steyr technology, made in China) Model D10.38-40,380HP
Fuel type Diesel
Power, max(kw/rpm) 279/2200
Emission EURO IV
Fuel tanker capacity(L) 400L
Transmission Model HW19710,10 Forward,2 reserves
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Steering system Model ZF8118
Front axle HF7
Rear axle ST16/MCY13(Q)
Tire 12R22.5/315/ 80R22.5/ 12.00R20
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab A7-P cab, one sleeper. Air-conditioner, , all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

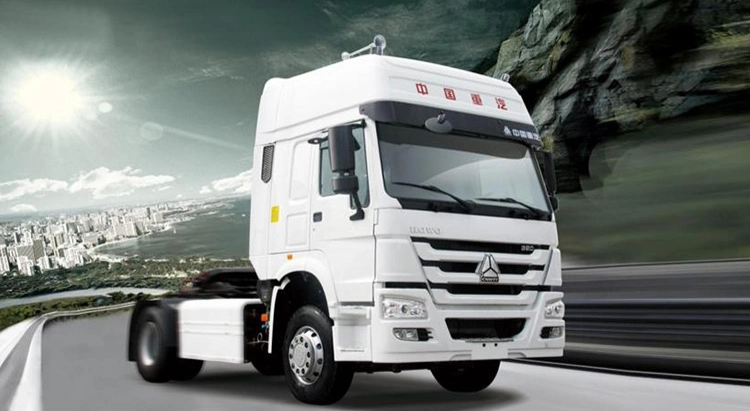

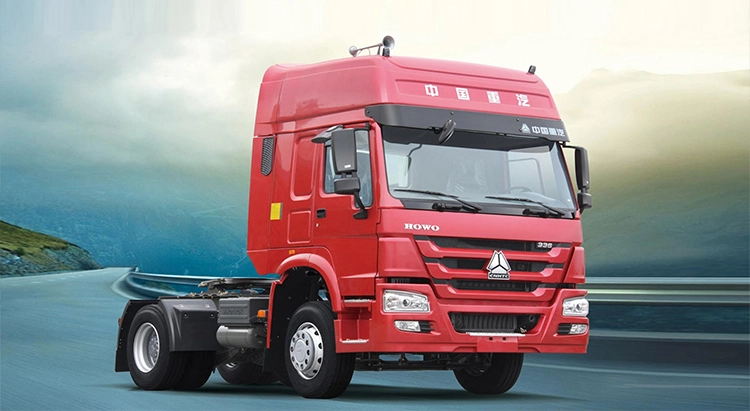

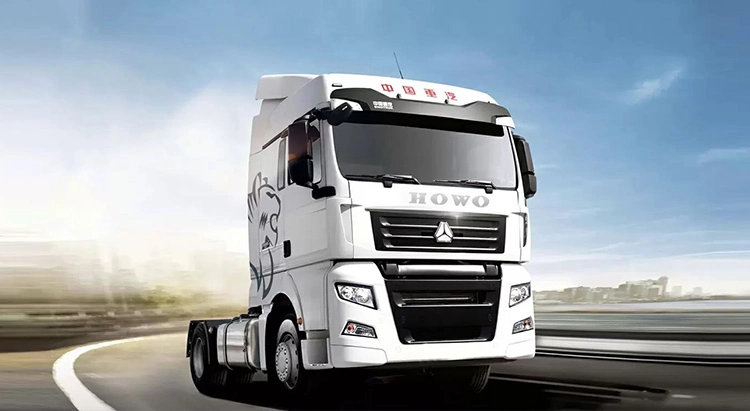

Product Images

howo tractor trucks | howo tractor truck | sinotruk howo tractor truck | sinotruk tractor

howo tractor trucks | howo tractor truck | sinotruk howo tractor truck | sinotruk tractor

howo tractor trucks | howo tractor truck | sinotruk howo tractor truck | sinotruk tractor



High Reliability
High Reliability
Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.
Engine
Engine
DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
