Dimensions:5800*3100*1800mm
Engine:WP12.430E201, EURO II
Description
Mining Dump Truck For Sale Specification
The design of Mining Dump Truck For Sale is made in such a way that it can more load at once. This is possible because of our dedicated design team, after doing lots of research and looking for some mining innovations they were able to achieve such ground-breaking design. Chassis, Body, Axle, Suspension are all fit in such a way that our mining tipper truck can carry more load than the others.
As we know we don’t have flat roads in the areas where mining activity is carried out. Hence, we must have a heavy-duty high-performance mining truck which can climb any slope. Therefore, the mining truck must be of High Gradeability. Mining Dump Truck For Sale, new arrival in mining industry has all the features which should be present in ideal mining truck.
|
Truck Model |
ZZ5707S3840AJ |
||||
|
Truck Brand |
SINOTRUK– Mining Dump Truck For Sale |
||||
|
Driving Style |
Left hand driving |
||||
|
Dimension(L*W*H)(mm) |
8460*3200*3475 |
||||
|
Cargo body size (L*W*H, mm) |
5900*3100*1800 32.92m3 |
||||
|
Cargo thickness(mm) |
Bottom:14mm, Side:12mm,rear door: 12mm |
||||
|
Cargo material |
Manganese plate |
||||
|
Wheelbase |
3800+1350 |
||||
|
Approaching/Departure Angle(°) |
29/35.5 |
||||
|
Curb weight(kg) |
20000 |
||||
|
Loading Weight(kg) |
80000 |
||||
|
Engine |
Model |
WD615.47, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection |
|||
|
|
Fuel type |
Diesel |
|||
|
|
Horse Power, max(kw/rpm) |
371HP |
|||
|
|
Emission |
EUROII |
|||
|
Fuel tanker capacity(L) |
500 |
||||
|
Clutch |
430 diaphragm spring clutch Type A, hydraulic air booster |
||||
|
Transmission |
Model |
HW19710 10 forwards and 2 reverse |
|||
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|||
|
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
|
|
Auxiliary brake |
Engine exhaust brake |
|||
|
Steering system |
Model |
ZF8098hydraulic steering with power assistance |
|||
|
Front axle |
HF12 |
||||
|
Rear axle |
AC26reinforced wide cast steel, dual reduction, double tires drive axle(10.24) |
||||
|
Min. Ground Clearance |
380mm( Front Axle) |
||||
|
Clutch |
430diaphragm spring clutch A-type, hydraulic control and gas assistant |
||||
|
Color |
Like picture |
||||
|
Tyre |
14.00-25 big size mining use special tire |
||||
|
Electrical system |
Battery |
2X12V/165Ah |
|||
|
|
Alternator |
28V-1500kw |
|||
|
|
Starter |
7.5Kw/24V |
|||
|
Cab |
HW7D cab, (with air-condition), Unilateral cab |
||||

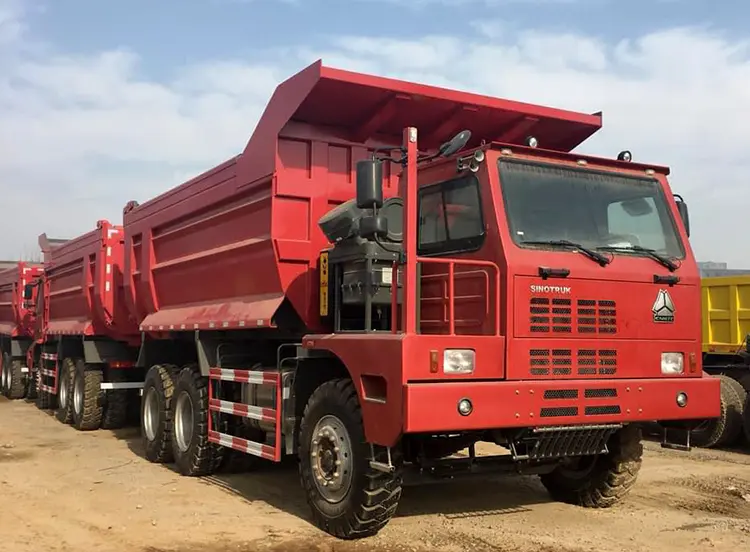

Product Images
Mining Dump Truck For Sale | mining dump truck price | dump truck mining
Mining Dump Truck For Sale | mining dump truck price | dump truck mining
