Description

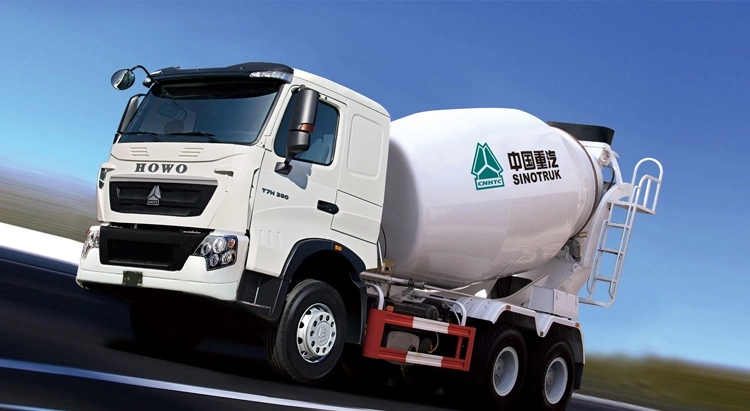

Sinotruk Concrete Mixer truck a cement mixer (concrete mixer) is a special truck used to transport concrete for construction; due to its shape, it is often called a snail truck. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete. During transportation, the mixing drum will always be kept rotating to ensure that the carried concrete will not solidify. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from taking up space.
Truck Model | ZZ1257M3641W ( Left Hand Driving Type) |
Truck Brand | SINOTRUK –HOWO |
Driving Style | Left Hand Driving |
Dimension(Lx W x H)(unloaded)(mm) | 8375*2496*3950mm |
Wheel base mm | 3625+1350 |
Cabin | howo truck HW76, one sleeper with air-conditioner. |
Engine | WD615.87, Euro 2, 290HP |
Transmission | HW19110, 10F & 2R |
Steering | ZF8118, power steering with hydraulic system. |
Front Axle | HF9, 1×9000 KGS |
Rear Axle | HC16, 2×16000 KGS |
Tyres | 1200R20, 10+1tyres |
Agitating Capacity | 8 Cubic Meters |
Mixer Pump | Eaton (USA Brand) |
Motor | Eaton (USA Brand) |
Speed Reducer | Bonfiglioli (Italy Brand) |
Geometric Volume | 13.1m3 |
Drum rotating | 13.5° |
Agitator rotaion speed | 0-18r/min |
Feeding speed | >3m3/min |
color | as you need |
Water Tank Volume | 300L |
