Sinotruk Howo 6x4 Cargo Truck

Truck ModelZZ1257N4641W
EngineWD615.47 Euro II
TransmissionHW19710, 10F/2R
Front axleHF9, 9000 KGS
Driving AxleHC16(Tandem axle)
Sinotruk Howo 6x4 Cargo Truck

Description

SINOTRUK (CNHTC) HOWO Cargo Trucks–the most advanced and most superior new generation of heavy duty trucks in China, with proprietary brand and intellectual property right, was developed by SINOTRUK (CNHTC) by applying the world advanced heavy duty truck key technology aiming at the market of the world.

Sinotruk Howo 6×4 Cargo Truck adopts the advanced key assemblies which are reasonably connected by advanced technology. The arrangement of the complete vehicle is perfect; the main assemblies are harmonious, unified and reliable, which makes the complete vehicle have better performance on power, economical efficiency, reliability and environmental protection.

Sinotruk Howo 6×4 Cargo Truck is with luxury and great appearance; it is a combination of fortitude and streamline, sturdiness and elegance. It aims at world heavy duty truck level on the ergonomic design like comfortability, safety and accessibility.

The launch of HOWO heavy duty truck embodied the enterprise operation philosophy of SINOTRUK (CNHTC) of pursuing the optimized customer value constantly. It will make the customer be proud of his correct option by its strong working ability, pleasurable interior and exterior trimmings, and better safety, comfortability, easy to operate, low fuel consumption and easy to maintain.

Model: ZZ1257N4641W
Engine Make: SINOTRUK (CNHTC)
Diesel: 4-stroke direct injection diesel engine
Engine model: WD615.47, Euro II emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling, 4 strokes
Maximum output: 371hp (273Kw) at 2200rpm
Maximum torque: 1470Nm at 1300-1600rpm
Number of cylinder: 6
Displacement: 9.726L
Bore/Stroke: 126/130mm
Ignition Sequence: 1-5-3-6-2-4
Fuel: diesel
Transmission Model: HW19710, 10F/2R, Manual Gearbox
Ratio Reverse: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.8, 1.34, 1, 13.91®
Max.Input Torque:1900nm
Cab HW76 model cab, with air conditioner,1 bunk, MP3 radio, German VDO electrical control system
Driving Axle Model:HC16(Tandem axle)
Central single reduction + hub reduction, casting axle housing.
Rated load(kg):2×16000
Ratio:5.73
Spring gage(mm):1020
Wheel tread(mm):1850
Input flange:Ф180
Differential device:Inter-wheel and inter-axle
Brake: Drum Ф420×185
Weight(Without lubricants)(kg):1st axle:860/2nd axle:800
Wheel bolt(mm):Ф335-10×M22×1.5
Min rim size(inch):20
Lubricants(L):GL5 85W-90
Front Axle Model: HF9
Rated load(kg):9000
Maximum steering angle of inner wheel(°):45
Kingpin inclination(°):3
Camber angle(°): 1
Spring gage(mm): 850~900
Brake: Air drum brake
Min rim size(inch): 20
Tyre Rims: 8.5-20, 10 hole-steel
Tyres: 12.00R20 Radial Tyre, 10+1pcs
Steering ZF power steering, model ZF8098,
hydraulic steering with power assistance
Ratio: 26.2
Electrics Operating voltage: 24V, negative grounded
Starter: 24V, 5.4Kw
Alternator: 3-phrase, 28V, 1000W
Batteries: 2x12V, 165Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Dimensions
(mm)
Wheel base:4600+1350
Front wheel track:1939
Rear wheel track:1800
Front/Rear overhang: 1500/2900
Approach/Departure angle (°):16/12
Overall Diamention: 10350×2520×3718 (LxWxH)
Weight
(Kg)
Permissible loading capacity:20000-40000
Chassis dead weight: 11450
Front axles loading capacity:9000
Rear axles loading capacity:2×16000
Performance Maximum driving speed (km/h):102
Maximum gradeability (%):32
Minimum turning circle (m):24
Fuel consumption (1/100 km):28
Ohters Cargo box (L*W*H):7650x2300x600/800mm
Cargo box thickness: bottom 3mm and side 1.5mm
Color opition: red, yellow, blue, green, white

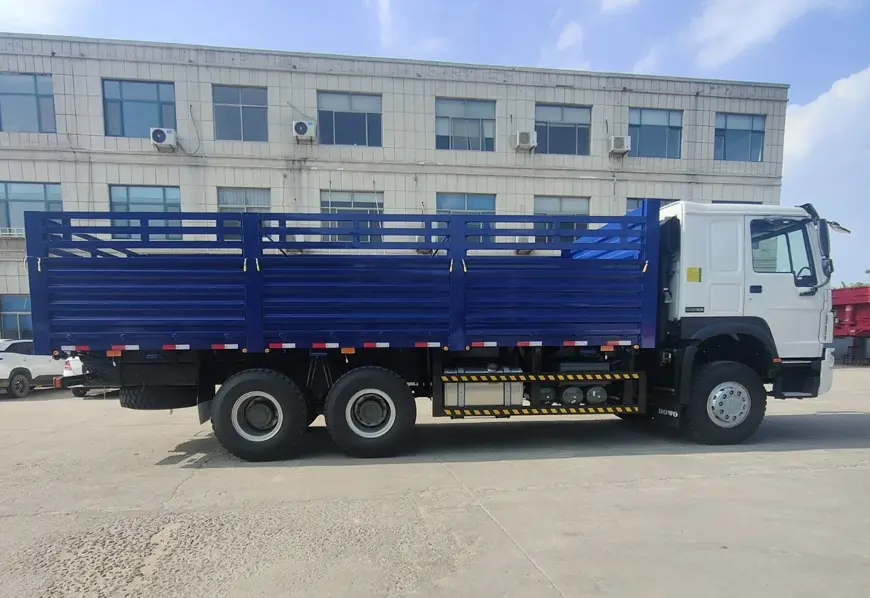

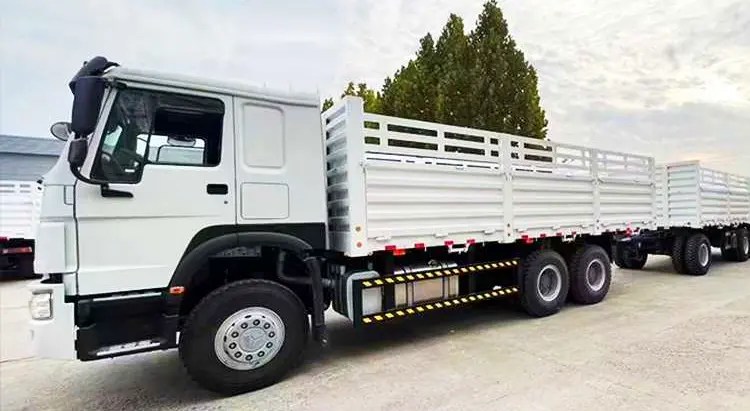

Product Images

Sinotruk Howo 6×4 Cargo Truck | howo truck price | sino trucks for sale

Sinotruk Howo 6×4 Cargo Truck | howo truck price | sino trucks for sale

Sinotruk Howo 6×4 Cargo Truck | howo truck price | sino trucks for sale

High Reliability
High Reliability
Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.
Engine
Engine
DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
