Sinotruk Howo 6x4 Tipper Truck

Vehicle typeDump Truck
Max load (kg)60000
Power380hp
Fuel Tank300L
Tires 12.00R20 (mixed pattern/20PR)
Sinotruk Howo 6x4 Tipper Truck

Description

Sinotruk Howo 6×4 Tipper Truck is equipped with a robust WP10.380E22 engine, delivering 380 horsepower. The Euro II compliant engine ensures a balance of power and environmental consciousness. It features a T7S-W cab and a HW19710 gearbox plus HW50 direct coupling extractor for seamles.

Designed for city construction and heavy-duty tasks, the T7H/T7S model excels in efficiency and durability. Its double-layer frame (8+8/300) and MCX16ZG dual rear axle ensure it can handle demanding environments. The 300L fuel tank enables long operational hours, while the 12.00R20 mixed tread tyres provide stability on various terrains. The high three-part bumper and ABS system offer enhanced safety, making it ideal for construction sites, material transport, and large-scale projects.



Sinotruk Howo 6×4 Tipper Truck specification configuration parameter table

Brand: HOWO Strain:T Sub-strain: T7H,T7S
Vehicle category: Medium and heavy trucks Vehicle use: Tipper Drive type: 6×4
Total mass (t):25 Overall mass (kg):9600 Wheelbase (mm):3825
Vehicle length (mm):7650 Vehicle width (mm):2496 Vehicle height (mm):3050
Truck Model: ZZ3257V384HB1
Engine: WP10.380E22 engine Engine power (Ps):380 Emission level: Euro II
Cab: T7S-W cab Transmission: HW19710 gearbox + HW50 power take-off(PTO)
Frame: Double layer frame (8+8/300) Front axle: VGD95 hand-adjustable arm front Axle (Drum) Drive Axle: MCX16ZG Dual Rear Axle (Drum)
Drive axle speed ratio: Ratio 5.451 Steering gear: Bosch steering gear Brake control system: with ABS
Bumper: High Bumper (3-part) Fuel tank/gas cylinder: 300L fuel tank
Tyres: 12.00R20 tyres (mixed tread/20PR)
Here are the specifications for the Howo T7h T7s Dump Truck configuration you mentioned:

Type: Dump Truck, Tipper Truck, City Construction Dump
Cab: T7S-W
Engine: WP10.380E22
Transmission: HW19710 + HW50 power take-off (PTO)
Front Axle (Drum): VGD95 Hand Adjustable Arm
Rear Axle (Drum): MCX16ZG Dual
Frame: Double Deck (8+8/300)
Suspension: Front & Rear Reinforced Multi-Leaf Springs (10/12)
Steering: Bosch
Exhaust System: Standard with ABS
Bumper: High bumper (three-section)
Seats: Main mechanical + secondary lightweight
Speed Ratio: 5.451
Intake System: Engineering air intake (Oil Bath Filter)
Wheels: Front and rear reinforced
Tires: 12.00R20 (mixed pattern/20PR)
Fuel Tank: 300L
Battery: 165AH
Optional Features: Rear towing hitch, fire extinguisher, optional reversing buzzer, manual cab lift, air conditioning, intercooler protection
Dashboard: English/French/Spanish
These specifications highlight the capabilities and features of the Howo T7h T7s Dump Truck, suitable for various heavy-duty applications in construction and transportation.

☆Made to order: We offer customized truck specifications to suit your requirements!

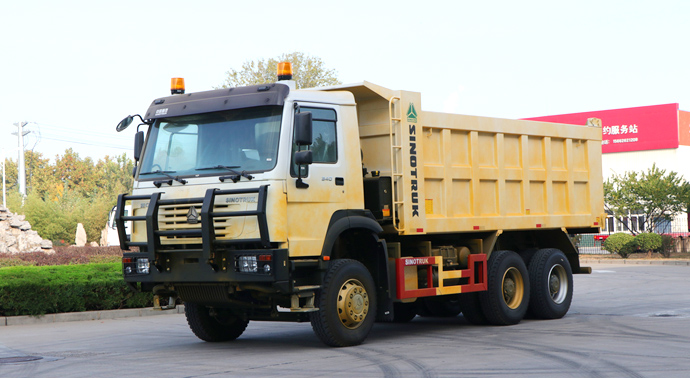

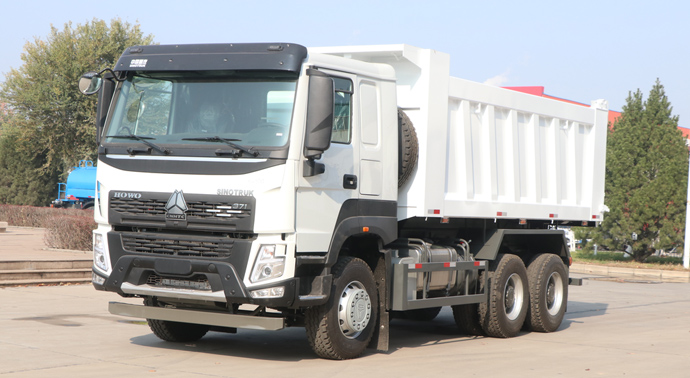

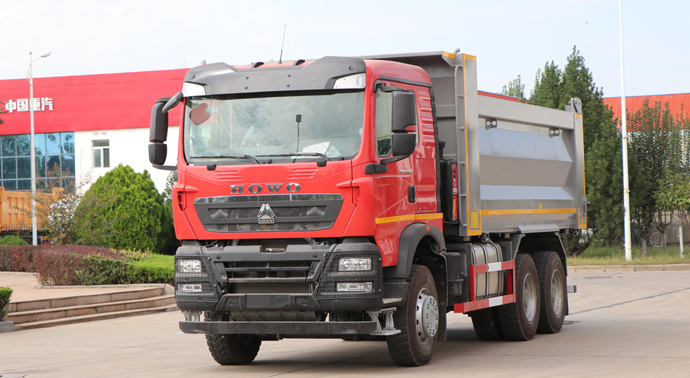

Product Images

Sinotruk Howo 6×4 Tipper Truck | howo dump truck 371 | tipper truck price in ghana

Sinotruk Howo 6×4 Tipper Truck | howo dump truck 371 | tipper truck price in ghana

Sinotruk Howo 6×4 Tipper Truck | howo dump truck 371 | tipper truck price in ghana

Sinotruk Howo 6×4 Tipper Truck | howo dump truck 371 | tipper truck price in ghana

High Reliability
High Reliability
Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.
Engine
Engine
DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
