Sinotruk Howo 6x4 Tractor Truck- SINOTRUK

Description

Howo Tractor Truck, most popular model and top one market share in Africa,is grand,fortitude and fluency side by side,majestic and graceful , show his unique leadership temperament ,especially in the comfort, safety and convenience of human design to target the world – class heavy truck level.

VEHICLE SPECIFICATION	DESCRIPTION
Truck Model	ZZ4257N3247V
Type of Vehicle	TRACTOR TRUCK
Truck Brand	SINOTRUK—HOWO
Driving Position	Left hand Driving
Fuel tanker capacity	400L
The Total Mass	40,000kg
Dead Weight	8800kg
Max speed	102km/h
Color	Optional
Chassis & Add Components
Frame Details	High-Strength U-profile ladder frame with Section of 300908mm and reinforced sudfram, all cold riveted cross members.
Dimension(L×W×H)(unloaded)	6800x2496x3563mm
Approaching angle/Departure angle	16/70
Overhang(front/rear)	1500/725mm
Wheel base	3225+1350mm
Engine
Model	WD615.47
Power	371hp/272kw.2000r/min
Emission	EURO II
Cylinder bore*stroke	126*155mm
Displacement	9.876L
Type	water-cooled,four strokes,6 cylinders in line, turbocharged, directly injection.
Kind of Fuel	Diesel
Fuel Consumption	30L/100km
Clutch & Gear Box System
Battery	2X12V/165Ah
Alternator	28V-1500kw
Starter	7.5Kw/24V
Brake System
Service brake	Dual circuit compressed air brake
Parking brake	Spring energy, compressed air Operating on rear wheels
Auxiliary brake	Engine exhaust brake
Wheels & Tyres
Type	295/80R22.5
Material	Tubeless tires
Quantity	10+1 spare
King pin	90mm
Cabin
Type	HW76 Standard cabin
Single sleeper with air conditioner, all-steel forward control,55 hydraulically tiltable To the front,2- arm windscreen wiper system with three speeds, laminated windscreen With casted-in radio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.

Product Images

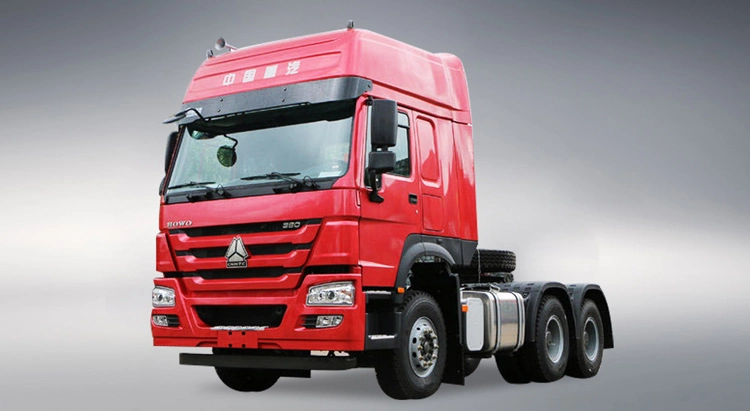

Sinotruk Howo 6×4 Tractor Truck | howo tractor truck | howo tractor head price

High Reliability

Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.

Engine

DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
