Description
Sinotruk Howo Tractor Truck the leading technology that created a new era of China’s heavy-duty truck transmission-SMARTSHIFT-AMT smart shift manual automatic transmission “SMARTSHIFT literally translates as “smart shift”. AMT is the standard technology for high-end heavy trucks in the world, and 50% of European trucks are equipped with AMT gearboxes. The launch of China National Heavy Duty Truck SMARTSHIFT-AMT enables Chinese users to enjoy the operating comfort of international high-end heavy-duty trucks, thereby elevating China’s heavy-duty truck technology to the ranks of the world’s advanced heavy-duty trucks! Leading China (Asia) heavy trucks into the era of automatic shifting.
Sinotruk’s SMARTSHIFT gearbox is a 16-speed electronically controlled and automatic gearbox, just like a highly skilled driver driving a truck, with higher fuel efficiency. The working principle and structure of AMT are completely different from the AT of a car. The AT for cars uses a turbine to drive hydraulic oil, and the hydraulic oil then drives the mechanical device. The efficiency loss of the oil drive is relatively large, so it generally consumes 1-2 liters of fuel more than a manual tank for a hundred kilometers. AMT is a mechanical gearbox that realizes automatic gear shifting through electronic control. When shifting gears, it is also like a manual box. It is necessary to separate the clutch and use the engine to increase the speed or the transmission to brake.
When the meshing synchronization is achieved, the most suitable gear is automatically switched. The manual box saves fuel by 3%-5%. Suitable for various working conditions. Using China National Heavy Duty Truck’s SMARTSHIFT, the driver can focus more on driving and the surrounding traffic environment, and react in time. Help new drivers reach the level of advanced drivers. The driver can still shift gears manually. Switch to manual mode and use the control handle to select the appropriate gear. Trucks using SMARTSHIFT do not have a clutch pedal, and gear shifting is fully automatic.
Type of Vehicle | TRACTOR TRUCK |
Truck Brand | SINOTRUK—HOWO TRUCK |
Color | Optional |
Wheel base (mm) | 3500 |
Engine | |
Model | WD615.47 |
Power | 371HP(273Kw/rpm) |
Emission | EURO II |
Type | water-cooled,four strokes,6 cylinders in line, |
turbocharged, directly injection | |
Kind of Fuel | Diesel |
Clutch & Gear Box System | |
Clutch | SINOTRUKΦ430mm diaphragm spring clutch |
Gear Box | HW19710/HW19712 10 or 12speeds |
Axles | |
Front Axle Model | HF7 axle |
Rear Axle | ST16 axle |
Ratio of rear axle | 3.73 Optional: 3.93 4.22 4.42 4.80 5.73 |
Electrical System | |
Battery | 2X12V/165Ah |
Alternator | 28V-1500w |
Starter | 5.4Kw/24V |
Brake System | |
Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels |
ABS | Optional |
Auxiliary brake | Engine exhaust brake |
Steering system | |
Type | hydraulic steering with power assistance |
Wheels & Tyres | |
Type | 11.00-20/12.00-20/12.00R20 |
Quantity | 6+1 spare |
King pin | 50mm |
Cabin | |
Type | HW76 |

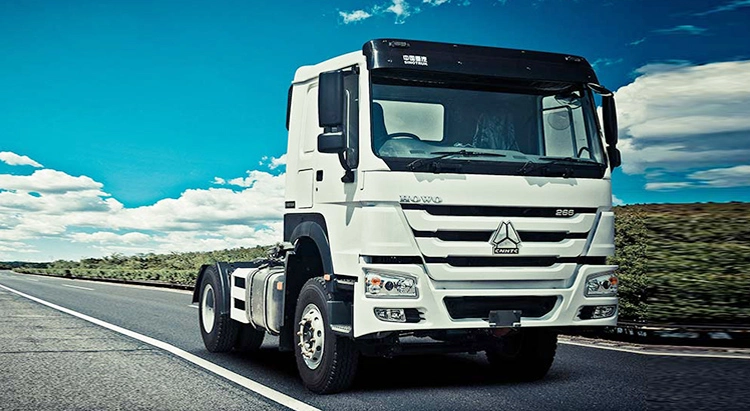

Product Images
