Sinotruk Military Truck

Engine WD615.62
Tare Weight8000kg
Kerb weight15000 Kg
Dimension6600×2500×3150mm
Rated Power336HP

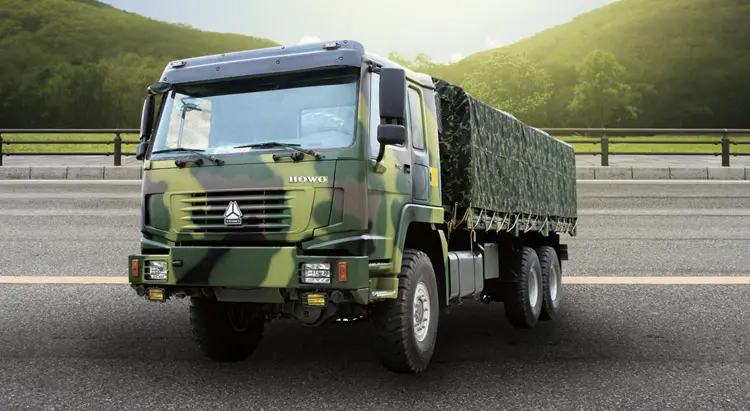

Sinotruk Military Truck

Description

Sinotruk Military Truck Main Specification

Sinotruk Military Truck This model is equipped with advanced cnhtc wd165 parts: engine power in series, with enginge 266hp – 371hp. the cnhtc transmission, drive axle, wabco brake system and braking system.
Sinotruk Military Truck box is suspended and installed the four points for the horizontal stabllizer was originally created to prevent internal compartment and protector before striking.
adopted by howo german military vehicle has the connector voss fast taken anywhere in the world and first class will greatly improve the air tightness of the braking system and security.
Sinotruk Military Truck can work under the temperature of 41 degrees, + 46 degrees celsius during the day and at night, up to 5 000 m altitude for a truck haut.options concreteted abs, lubrication system, of the ec treaty.

 Cabin  Driving type 4×4  LHD
HW76 cabin with one bed and air conditon
70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 6600×2500×3150
Wheel base  (mm) 4300
Wheel track  (front/rear) (mm) 2022/1830
Weight in KGS Tare Weight 8000
payload 15000
Front axles loading capacity STR 1×7000
Rear axles loading capacity ST6 1×16000
Max. driving speed(km/h) 70
Engine  Brand SINOTRUK
Model WD615.62
Type 4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 266
Displacement (cc) 9726
Emission standard Euro 2
Gearbox HW15710C,10 Forwards gear & 2 reverse gear
Transfer Case 1200
Steering  ZF8118 power steering, hydraulic steering with power assistance
Tire  12.00-20 tyre 7 pcs including one spare tire
Carriage size(mm)

5000x2300x600

Brakes

Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Product Images

Sinotruk Military Truck | sinotruk ghana contact | sinotruk ghana contact | howo trucks for sale

Sinotruk Military Truck | sinotruk ghana contact | sinotruk ghana contact | howo trucks for sale

High Reliability
High Reliability
Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.
Engine
Engine
DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
