Engine Power:540
Full mass:32000 kg

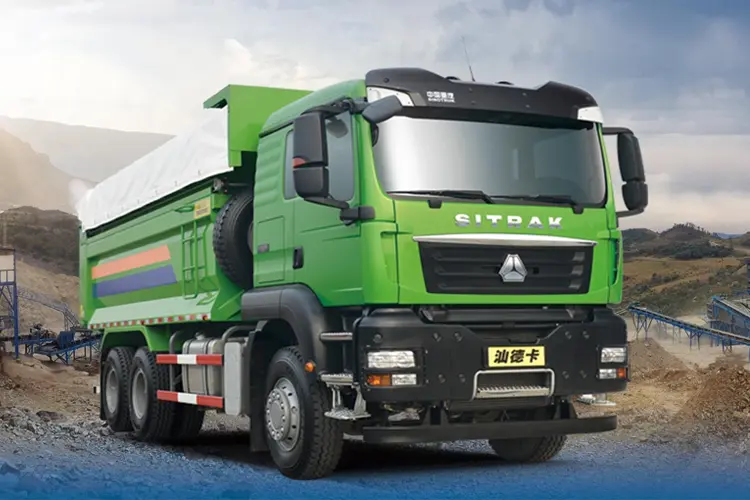

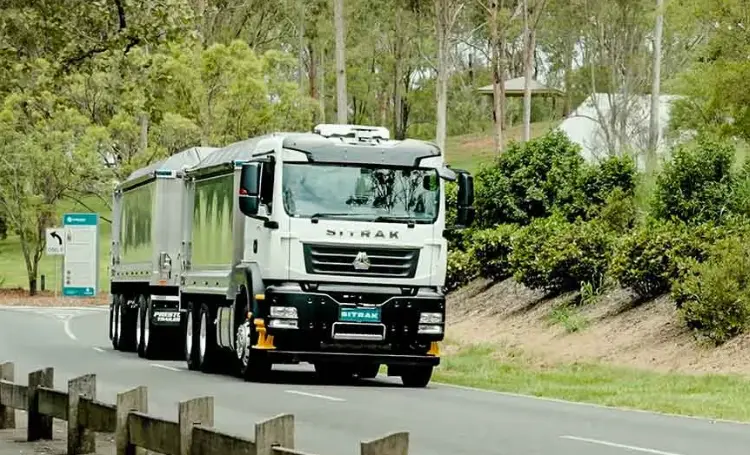

Sitrak Dump Truck Specification
Mining companies often require robust and reliable trucks to transport heavy equipment, minerals, or overburden. Sitrak Dump Truck are the perfect choice for this type of industry because they are designed to operate in harsh and demanding conditions. The tippers are equipped with a hydraulic system that enables them to lift and dump heavy loads with ease. With a high load-carrying capacity, Sitrak Dump Truck are ideal for transporting materials like coal, iron ore, and other bulk minerals.
Another significant application of Sitrak Dump Truck is in the construction industry. Construction sites require vehicles that are capable of transporting heavy materials like gravel, sand, and other construction materials. Sitrak Dump Truck are a reliable option for these jobs because they can transport heavy loads to the construction site efficiently and quickly. The tippers’ hydraulic system ensures that the materials are dumped precisely in the right location, making the construction process more efficient and cost-effective.
Sitrak Dump Truck are also suitable for use in the transportation of agricultural products. They can transport large volumes of crops like sugar cane, corn, wheat, and other farm produce. With their excellent load-carrying capacity, Sitrak Dump Truck increase efficiency and reduce transportation costs, making them ideal for use in the agricultural industry.
Sitrak Dump Truck Parameters
Drive mode |
6×4 |
|||
Overall dimension |
L×W×H (mm) |
6895* 2496 *3410, 3620, 3960,3980 |
||
Wheelbase (mm) |
3225+1350, 3200+1400 |
|||
Front / rear wheel base (mm) |
2022, 2041/1830 |
|||
Max. total mass (kg) |
25000 |
|||
Curb weight (kg) |
8800 |
|||
Cab |
Space size |
C7H-P (wide body and medium / high roof), C7H-G (wide body and high roof), C7H-F (medium-wide body and middle / high roof), C7H-U (medium-wide body and high roof) |
||
External |
4-point full-floating cab suspension, double toolkits, one-touch lifting window, MAN proprietary technology door hinge |
|||
Internal |
Air seat with waist cushion, pneumatic adjustable steering wheel, VDO instrument, height-adjustable safety belt, electrical adjustable rearview mirror, rearview mirror electrical heater, skeleton-type berth Dimension of lower berth (mm): Wide-body cab: 2,184×675, medium-wide body cab: 1,986×625 Dimension of upper berth (mm): Wide-body cab: 2,137×701, medium-wide body cab: 1,936×701 |
|||
Engine |
Emission standard |
China IV |
||
Engine model |
MC11.36-40 |
MC11.40-40 |
MC11.44-40 |
|
Max. net power / speed |
265/1900 |
294/1900 |
324/1900 |
|
Max. torque / speed |
1800/1000-1400 |
1900/1000-1400 |
2100/1000-1400 |
|
Transmission |
Model |
ZF16S1870 |
ZF16S1950 |
ZF16S221 OD |
First gear / top gear ratio |
15.39/0.85 |
11.64/0.83 |
13.80/0.84 |
|
Clutch |
430A |
430A |
Built-in clutch assembly |
|
Drive axle |
Model |
MCY13Q |
||
Ratio |
3.08, 3.36, 3.7, 4.11 |
|||
Suspension system |
Front / rear less-leaf spring suspension, HUV suspension (optional) |
|||
Saddle |
Jost 90 international standard saddle |
|||
Front axle |
HF7disc brake (standard configuration: SKF bearing) |
|||
Steering system |
ZF8098 steering gear and ZF steering oil pimp |
|||
Braking system |
ABS (WABCO braking system), VOSS fittings, TMD disc brake friction block, ASR+EBL+TPM (optional) |
|||
Air intake system |
MANN+HUMMEL air filter |
|||
Fuel tank |
400 L, optional 560 L (only for 4×2 and 6×4 China III) |
|||
Tyre |
PIRELLI 315/80R22.5, MICHELIN tyres (optional) |
|||
Others |
Automatic slack adjuster (standard configuration), tachographs, integrated fender, split side protection, and fleet management system (optional) |
