Sitrak G7 540 Specification
Sinotruk and its German partner have cooperated on two levels: provision of capital and transfer of technology and management expertise. Sinotruk’s German partner invested €560 million in Sinotruk in 2009 and has a direct interest in the Chinese manufacturer with a 25% stake plus one share. The transfer of technology and management expertise is based on a contract signed by both partners regarding the granting of technology licenses.
As part of this high-powered cooperation, the truck platform, engine, chassis and axles technologies have been developed for the SITRAK truck series. The localized truck series is manufactured at Sinotruk’s plants and is far superior to any other Chinese produced trucks. SITRAK competes with European trucks both in terms of performance and quality.
Sitrak G7 540 Parameters
|
Main Technology Parameter |
|
|
Model name |
SINOTRUK SITRAK G7 TRACTOR TRUCK |
|
Driving type |
Left hand drive |
|
Traction type |
6X4 |
|
Scope of application |
Transportation of industrial and daily necessities |
|
Color |
Optional |
|
Weights |
|
|
Gross Vehicle Weight(kg) |
Approx.9800 |
|
Gross Combination Weight(kg) |
Approx.55000 |
|
Dimensions |
|
|
Wheelbase(mm) |
3200+1400mm |
|
Overall dimension(mm) |
Approx. 6895×2496×3980 |
|
Engine |
|
|
Engine model |
MC13.48-61, 480HP |
|
Emission standard |
Euro 5 |
|
Engine type |
4 stroke water-cooled, inter-cooling |
|
No. of cylinders |
straight-6 cylinders |
|
Displacement(L) |
12.419L / Diesel |
|
Max. output (kw) |
353kW |
|
Fuel Tanker |
860L+240L dual fuel tank |
|
Drive Line |
|
|
Gearbox |
HW25716XAL |
|
16 speeds, 16 forwards, 2 reverse gear,AMT gearbox |
|
|
Steering |
Power steering, Bosch steering gear |
|
Brake |
Front axle disc brakes, dual rear axle drum brakes |
|
Cab |
|
|
Cabin |
G7-G cab Elite version, High roof, 3passengers allowed double sleeper, airbag seats,Can be tipped forwardly, with inner A/C |
|
Standard configuration |
Air container, Equipped with air deflector and side air deflector |
|
Axle |
|
|
Front axle |
VPD71DS 7.0T– Disc Brake |
|
Rear axle |
12T MCJ12BGY self-adjusting arm double rear axle with inter-wheel & inter-axle differential locks Double reduction pneumatic brake |
|
Speed ratio |
2.85 |
|
Tire specification |
|
|
Tire specification |
Front aluminum alloy wheels + rear lightweight wheels 12R22.5 (Low rolling resistance/international brand) 6 tires+1 spare part |
|
Parameter |
|
|
Maximum speed (km/h) |
89 |
|
Max. Gradeability |
35(%) |
|
Torque (Nm) |
2300 |
|
Suspension |
Front few leaf springs (2); Rear air suspension |
|
Frame(mm) |
TGA technology frame – version B |
|
Saddle |
90# JOST saddle |
|
Bumper |
Low bumper (non-metallic) |
|
Fender |
Integral fender |
|
Power System |
180AH battery |
|
Safety devices |
ABS(4S/4M)+ESC |
|
Imaging system |
Four directional camera |
|
exhaust system |
Standard version exhaust system |

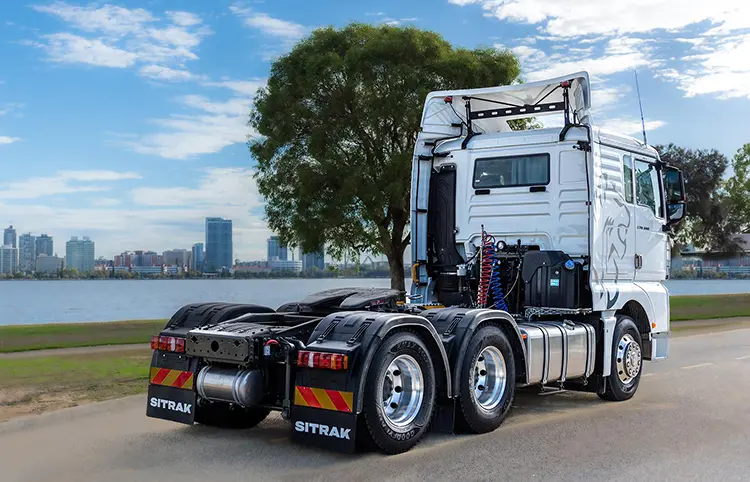

Product Images
