Dimension (mm):8400×2496×3400
Max load (kg):25000
Used Trucks For Sale In China Specification
Used Sino Trucks For Sale In China Parameters

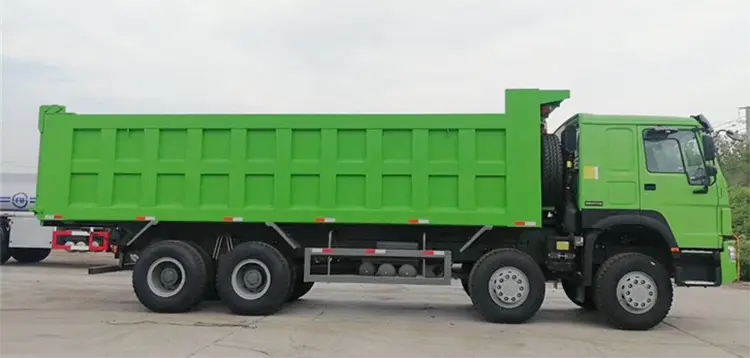

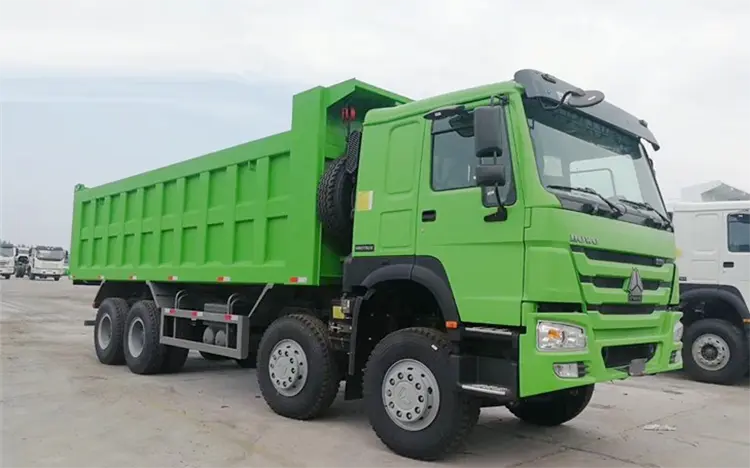

Sinotruk HOWO 8×4 Dump Truck | |
Chassis Model | ZZ3317V 3867B1 (Left/ Right Hand Driving Type Optional) |
Engine | Model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance |
Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO) |
Front Axles | HF9, 9000kg with drum brake system |
Rear Axles | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73 |
Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
Steering System | famous brand power steering, model ZF8118 , hydraulic steering with power assistance |
Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
Tires | 12.00R20 (12.00-20, 315/ 80R22.5 optional), with one spare tyre |
Fuel Tank Volume (L) | 400 |
Dead Weight | 14500 |
Gross Vehicle Weight (kg) | 39000 |
Rated Loading Weight (kg) | 25850 |
Overall Dimension (LxWxH) (mm) |
10545*2550*3450 |
Wheelbase (mm) | 1800+3825+1350 |
Min.Ground Clearance (mm) | 314 |
Approach/Depart Angle(°) | 19/ (27/65) |
Gradeability (%) | ≥50 |
Min. Turning Diameter (m) | 15 |
Cargo Body Size (LxWxH) (mm) | 7600*2300*1500 |
Cargo Body Volume (m3) | 27 |
Remark (Engine Power Option) | 400HP; 371HP |
